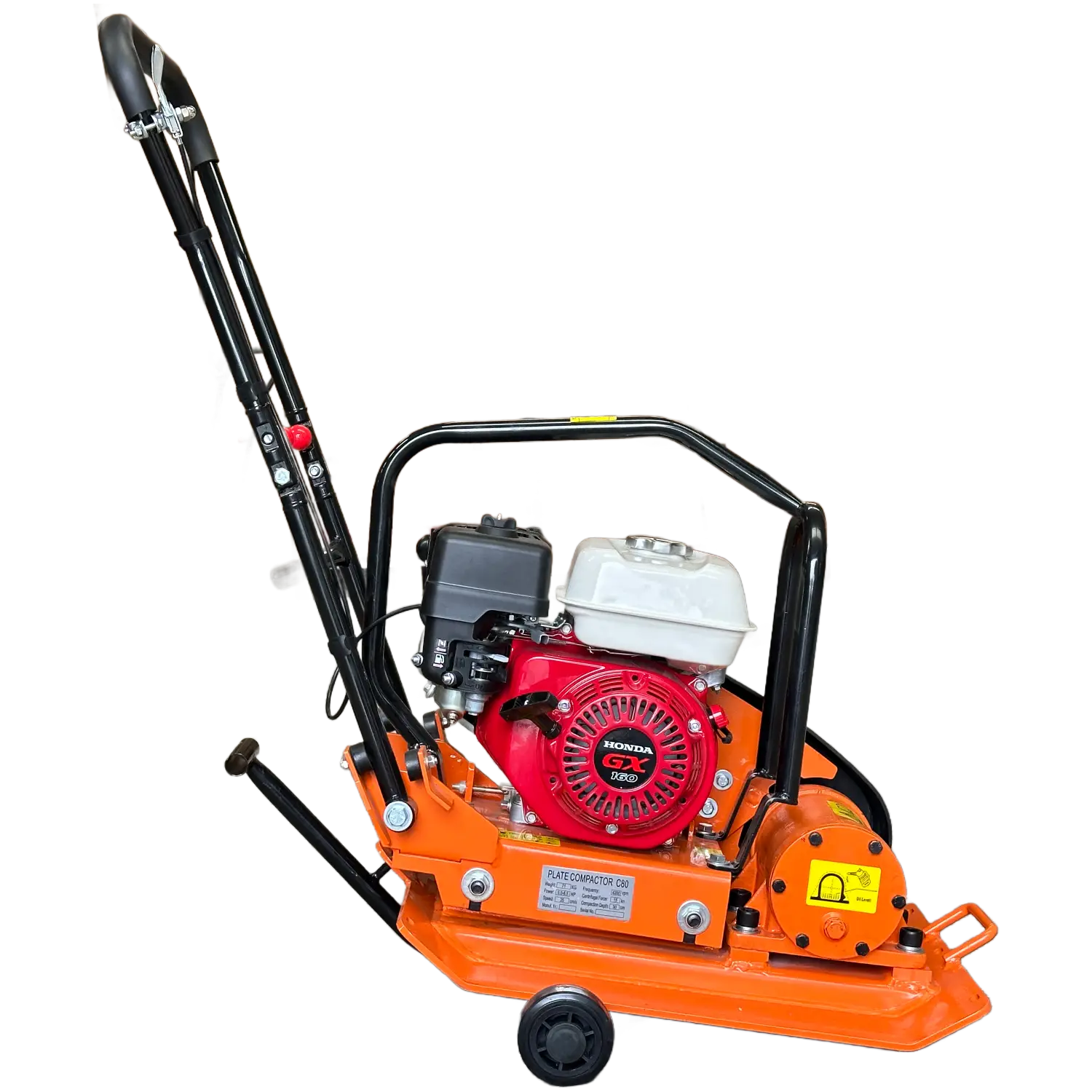

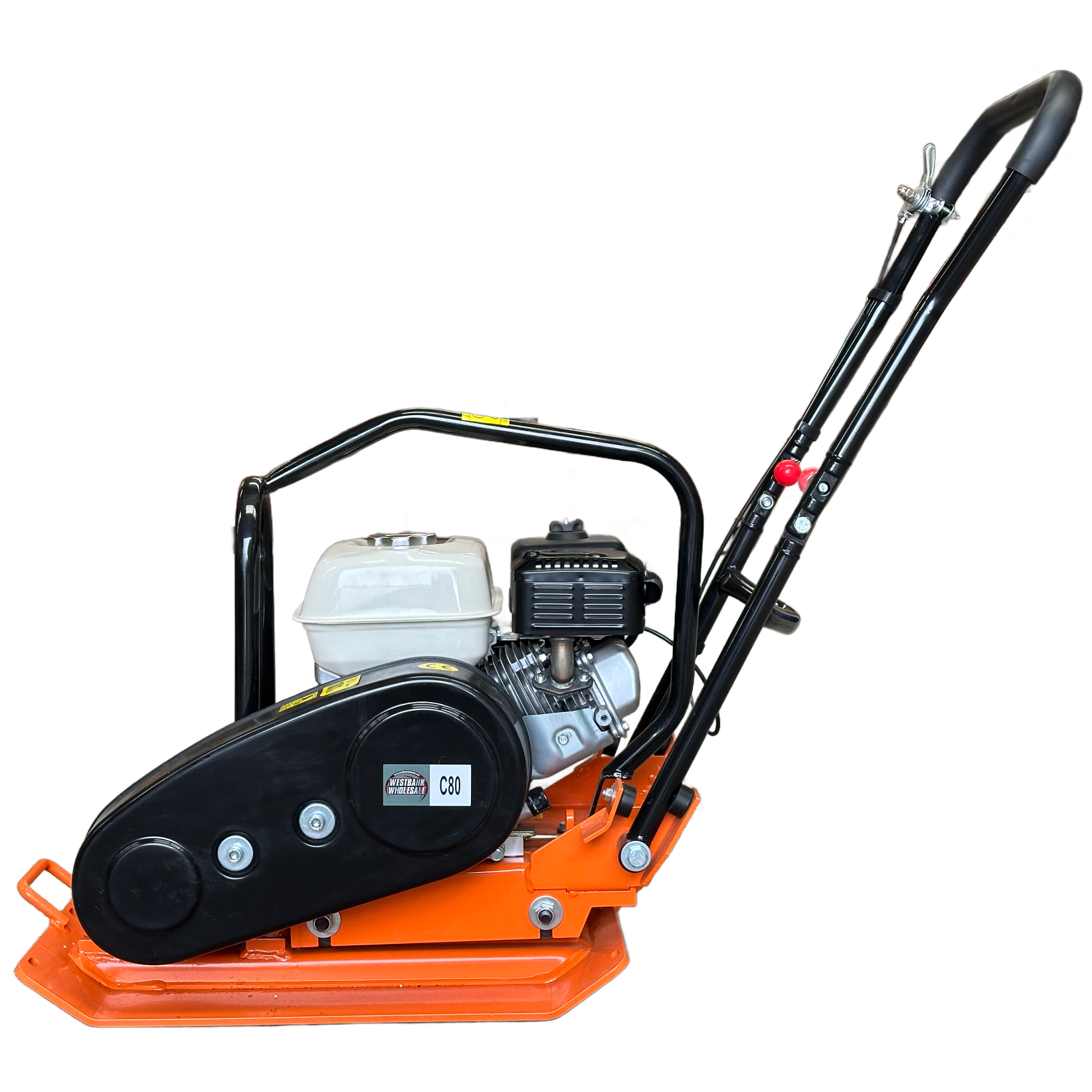

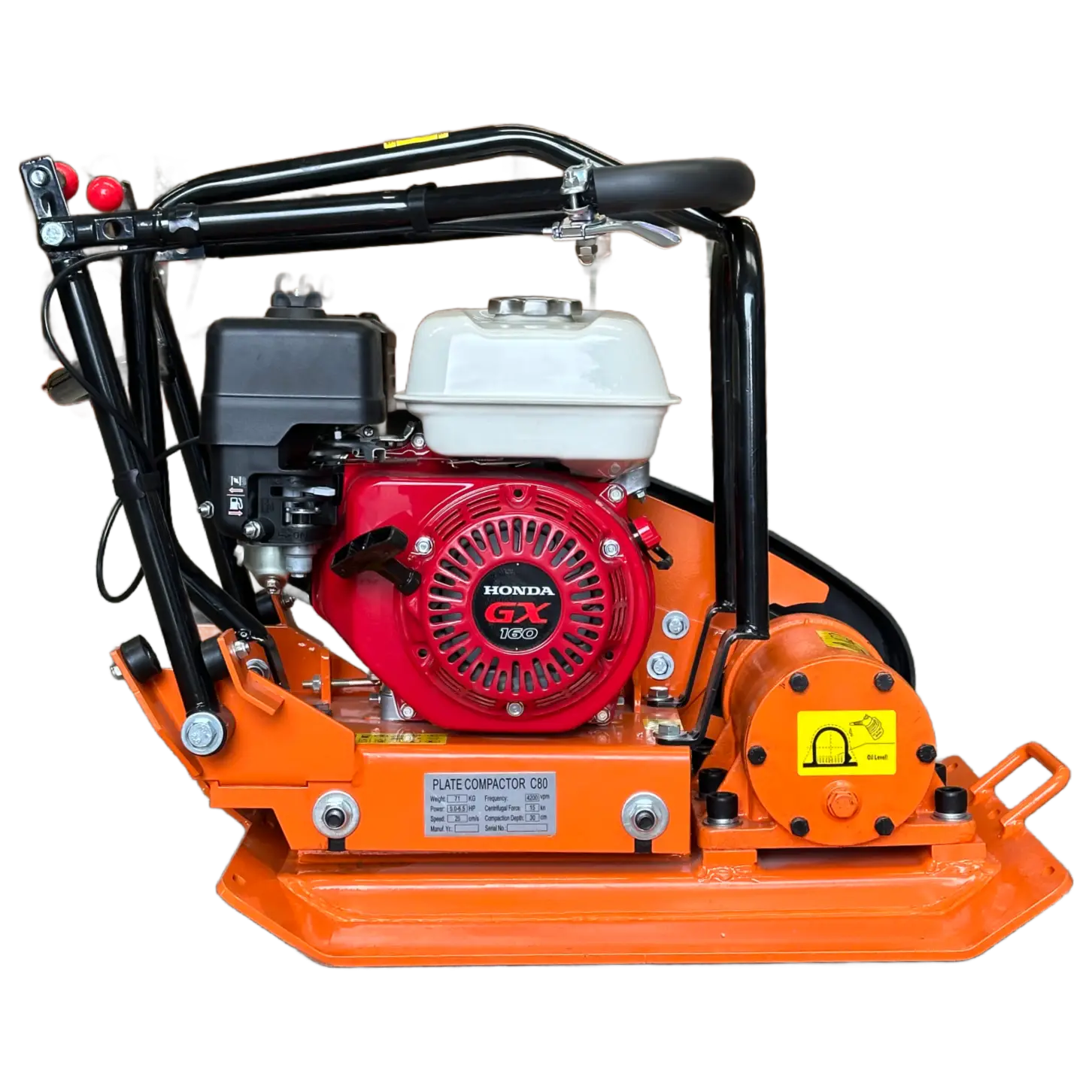

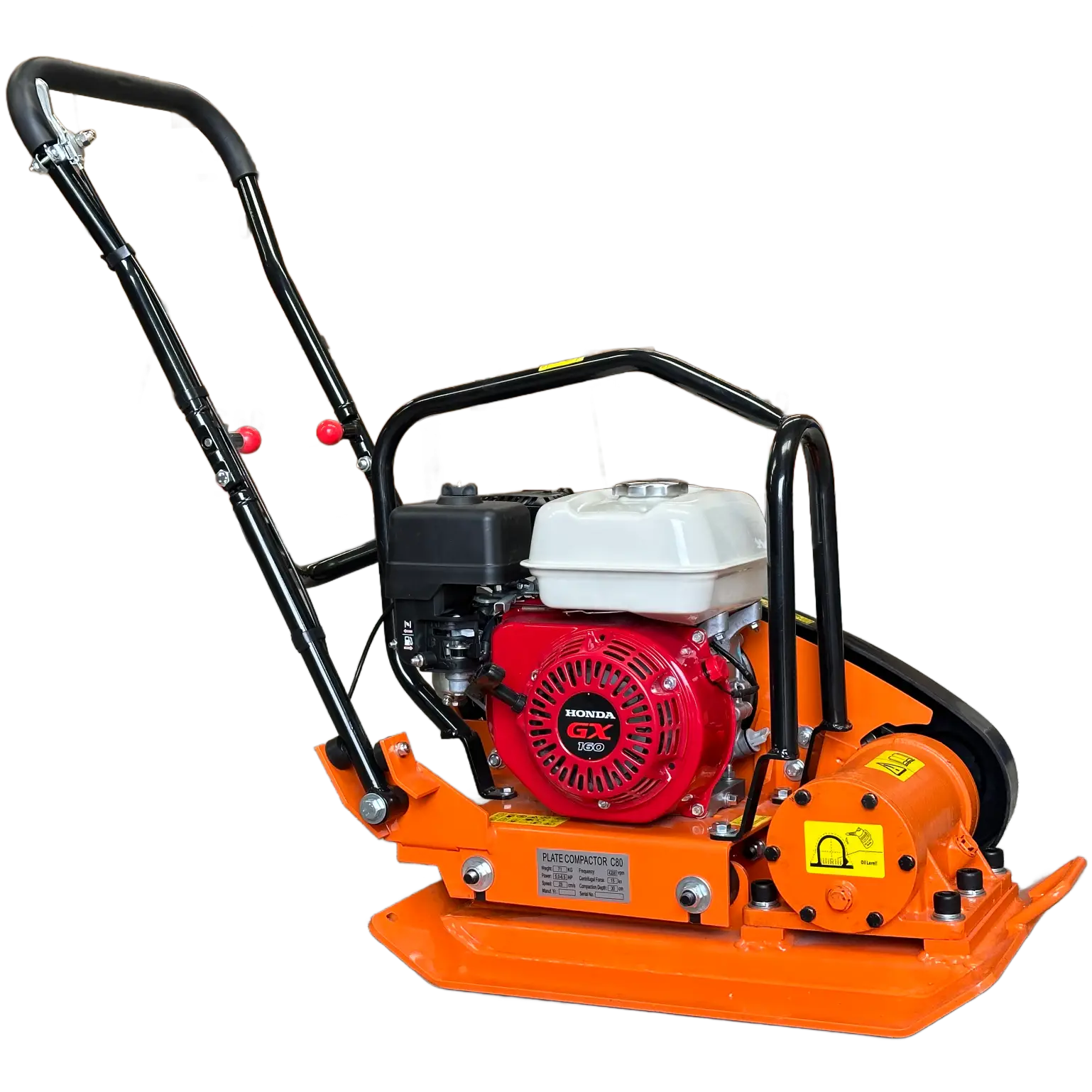

Heavy Vibrating Wacker Plate

Pricing Information
  • 1 Day : £20
  • 2 Days : £23
  • 3 Days : £26
  • 4 Days : £29
  • 5 Days : £32
  • 6 Days : £35
  • 7 Days : £38
  • 8-28 Days : £5 / day
  • Heavy Vibrating Wacker Plate
    1 - 1 days : £20.00 Fixed
    2 - 2 days : £23.00 Fixed
    3 - 3 days : £26.00 Fixed
    4 - 4 days : £29.00 Fixed
    5 - 5 days : £32.00 Fixed
    6 - 6 days : £35.00 Fixed
    7 - 7 days : £38.00 Fixed
    8 - 28 days : £5.00 / Day
    Hire Start Date and Time
    Off Hire Date and Time
    Quantity
    Your Options

    Detailed Description

    Belle has developed a series of 2 true combination plates for compaction of granular and mixed materials with cohesive content as well as for hot or cold asphalt in confined areas such as parking lots, highways, close to structures, kerbs, and abutments This product provides great value for rental as it has been designed to resist the toughest applications. This plate is designed with improved speed and frequency and with a shortened base plate. It allows the operator to smoothly run the machine in a wide range of field applications with demand on fast maintenance and repair.

    • Foldable mounted guide handle offers superior manoeuvrability and can be lowered to operate under obstacles and close to form work.
    • Reinforced centrifugal clutch ensures longer belt life, and simplified belt adjustment
    • Lifting points and front lift cage offer easier loading and unloading for operator convenience
    • Large capacity water tank is built into the protective frame
    • Angled holes on spray bar allow complete water coverage over the full width preventing any asphalt pick-up on plate bottom
    • The spraybar is fully protected from damage, easily positioned,with integral paving pad clamp points
    • Optional compact wheelkit, easily fitted and removed
    • Life lubricated vibration bearings

    Technical Specification

    • Model
      PCX 12/36
    • Engine Power (hp/kW)
      Honda Petrol GX120 4/3
    • Plate Size WxL (mm)
      360 x 606
    • Static Pressure (kg/m2)
      586
    • Centrifugal Force (kN)
      12.25
    • Travel Speed (m/min)
      20
    • Vibration (m/sec2) / usage (hrs)
      4.74 / 2.14
    • Weight (kg)
      81
